Exercise

Warm up

what is bronze made of?

how can we study element composition of the bronze artefacts?

why might the composition of elements differ between artefact types, or even within the same type?

Problem

In this exercise, we will revisit to the fabricated Bronze Age cemetery from the exercise in Week 3. The lab has sent you the results of the elemental composition analysis of bronze artefacts from this cemetery. The results are in an Excel spreadsheet.

Your task is to import these results into R, perform PCA and visualise the results using the ggplot() function, and determine whether the composition of bronze weapons differs from that of bronze jewellery and clothing components.

Recomended worflow:

clean your workspace, create a new script in your project, load libraries
import the artefacts.csv and bronze_composition.xlsx
connect the two imported tables together
create new variable “category” with values “weapon” and “jewel” based on condition in the variable “artefact_type”
create a matrix with elements columns and calculate the PCA
extract variability values from the result
create tables with artefact coordinates and elements coordinates from the result
plot the result in ggplot. Use different color of the points for weapons and different for jewels

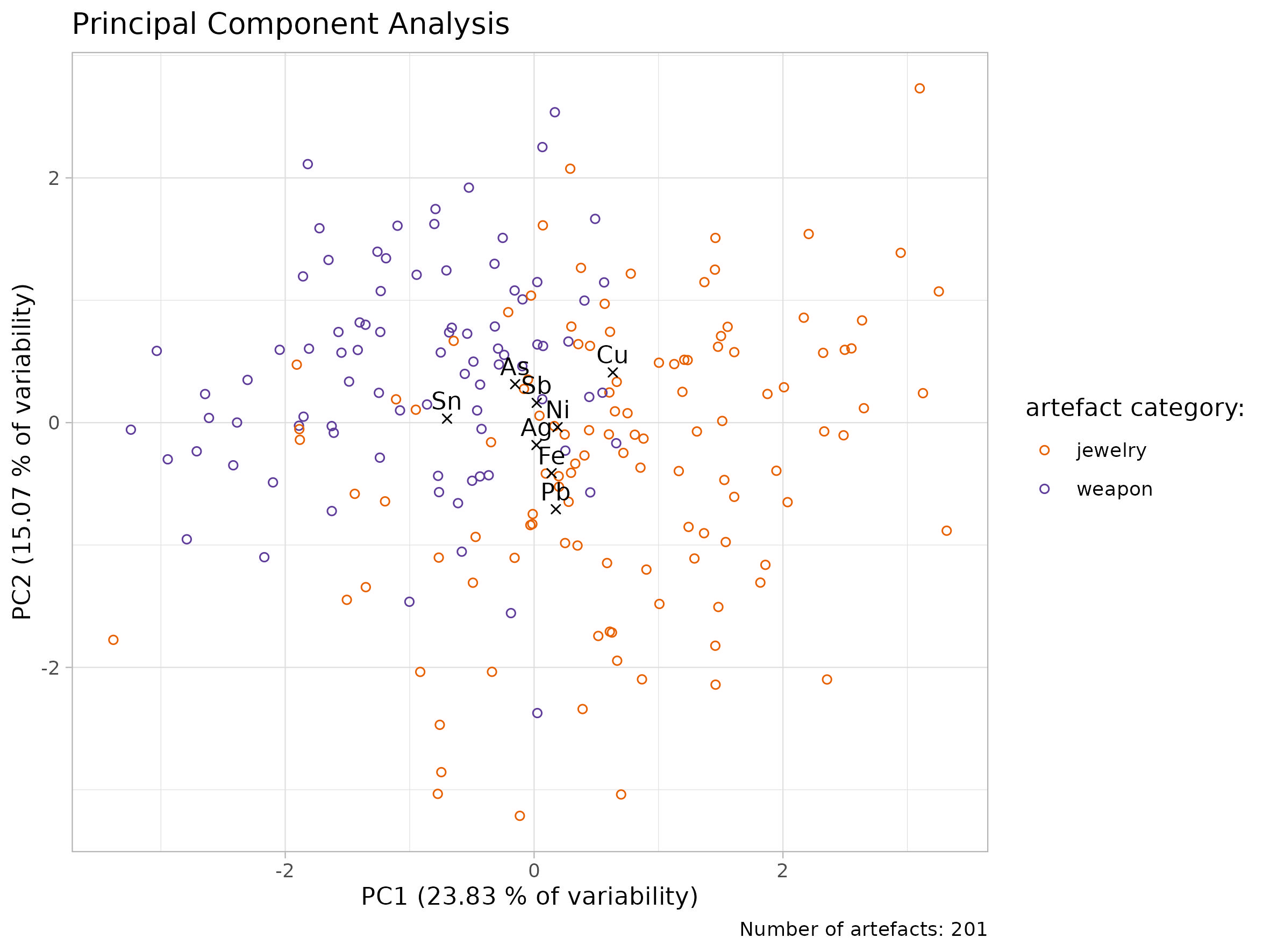

The ideal result:

1. Cleaning the worskspace,…

clean your workspace, create a new script in your project, load libraries

Hint:

Use code rm(list = ls()) to clean your workspace

Solution

rm(list = ls())
library(here)
library(dplyr)
library(ggplot2)

2. Importing data

import the artefacts.csv and bronze_composition.xlsx

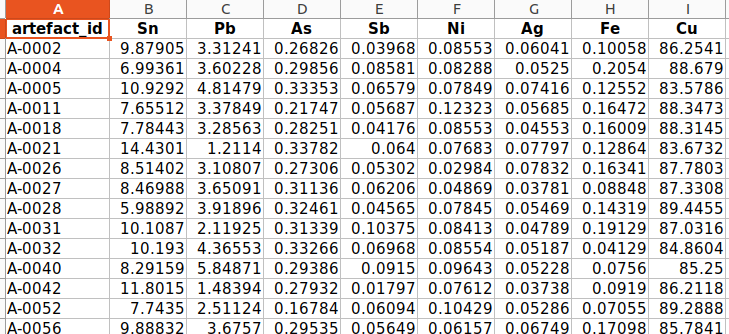

note that the data from lab with elements composition are in .xlsx format
to make it easier for you to follow the solution to the task, name the first table df_artefacts and the second df_composition

Hints

You have two ways how to import .xlsx into R

open the data in Excel and export the table as a .csv file. Then import it into R as usual using the read.csv() function.

Or:

use readxl::read_excel() in the same way as read.csv() to import directly the .xlsx file

Solution 1

df_artefacts <- read.csv(here("data/artefacts.csv"))
df_composition <- read.csv(here("data/artefacts.csv"))

Solution 2

install.packages("readxl")
library(readxl)
df_artefacts <- read.csv(here("data/artefacts.csv"))
df_composition <- read_excel(here("data/bronze_composition.xlsx"))

3. Join tables

to better interpret the element compositions, we need information about the artefacts. To achieve this, we need to join the df_artefacts and df_composition tables.
name the table df_join

Hint

use dplyr::join_left() to connect the two tables

Solution

df_join <- df_composition |>
  left_join(df_artefacts, by = join_by(artefact_id))

4. Division between weapons and jewels

in your table df_join create a new variable “category” with values “weapon” and “jewel”, based on condition in the variable “artefact_type”
name your new table df_result

Hints

firstly: copy, paste and run this code:

list_weapons <- c("Arrowhead", "Axe", "Dagger", "Spearhead", "Sword")
list_jewelry <- c("Bead", "Belt fitting", "Bracelet",
                    "Brooch","Buckle", "Needle","Pin", "Ring")

then, by the help of dplyr::mutate() create a new variable “category” where all artefacts from vector “list_weapons” will get value “weapon” and all artefacts from the vector “list_jewelry” will get value “jewelry”
if lost, check the lesson “Data transformation” from the Week 3

Solution

df_ready <- df_join |>
  mutate(artefact_category = case_when(
    artefact_type %in% list_weapons ~ "weapon",
    artefact_type %in% list_jewelry ~ "jewelry",
    .default = "other"
  )
  )

5. Creating a matrix and calculation of the PCA

create the matrix, calculate the PCA and observe the results
name the result of the PCA as pca_result

Hints:

select only variables with chemical elements to the matrix and create the matrix with as.matrix()
use parameter scale. = TRUE when conducting the PCA with prcomp()

Solution:

pca_result <- df_ready |>
  select(Sn:Cu) |>
  as.matrix() |>
  prcomp(scale. = TRUE)

pca_result
str(pca_result)
summary(pca_result)

6. get the values

Hint and Solution:

copy and paste this code to save the values for later use.

variances_all <- pca_result$sdev^2 / sum(pca_result$sdev^2)


variability_pc1 <- round(variances_all[1]*100, 2)
variability_pc2 <- round(variances_all[2]*100, 2)

7. create the tables with coordinates

from the pca_result, create two tables: one with the coordinates of the bronze artefacts and one with the coordinates of the chemical elements. Call these tables table_artefacts and table_elements respectively
name the variable with artefact category as category and the variable with elements as element

Hints:

coordinates of the artefacts are stored at pca_result$x and coordinates of the elements in pca_result$rotation

Solution

table_artefacts  <- pca_result$x |>
as_tibble() |>
mutate(
    category = df_ready$artefact_category
    )

table_elements <- pca_result$rotation %>%
  as_tibble(rownames = "element") %>%
  select(element, PC1, PC2)

8. visualise your results with `ggplot()`

create one plot from table_artefacts and table_elements. Use different color or shape for artefacts category in order to observe differencies between weapons and jewels

Hints

plot table_artefacts and table_elements in separate geom_point()
use paste0() to add values of variability to the x and y axis descriptions

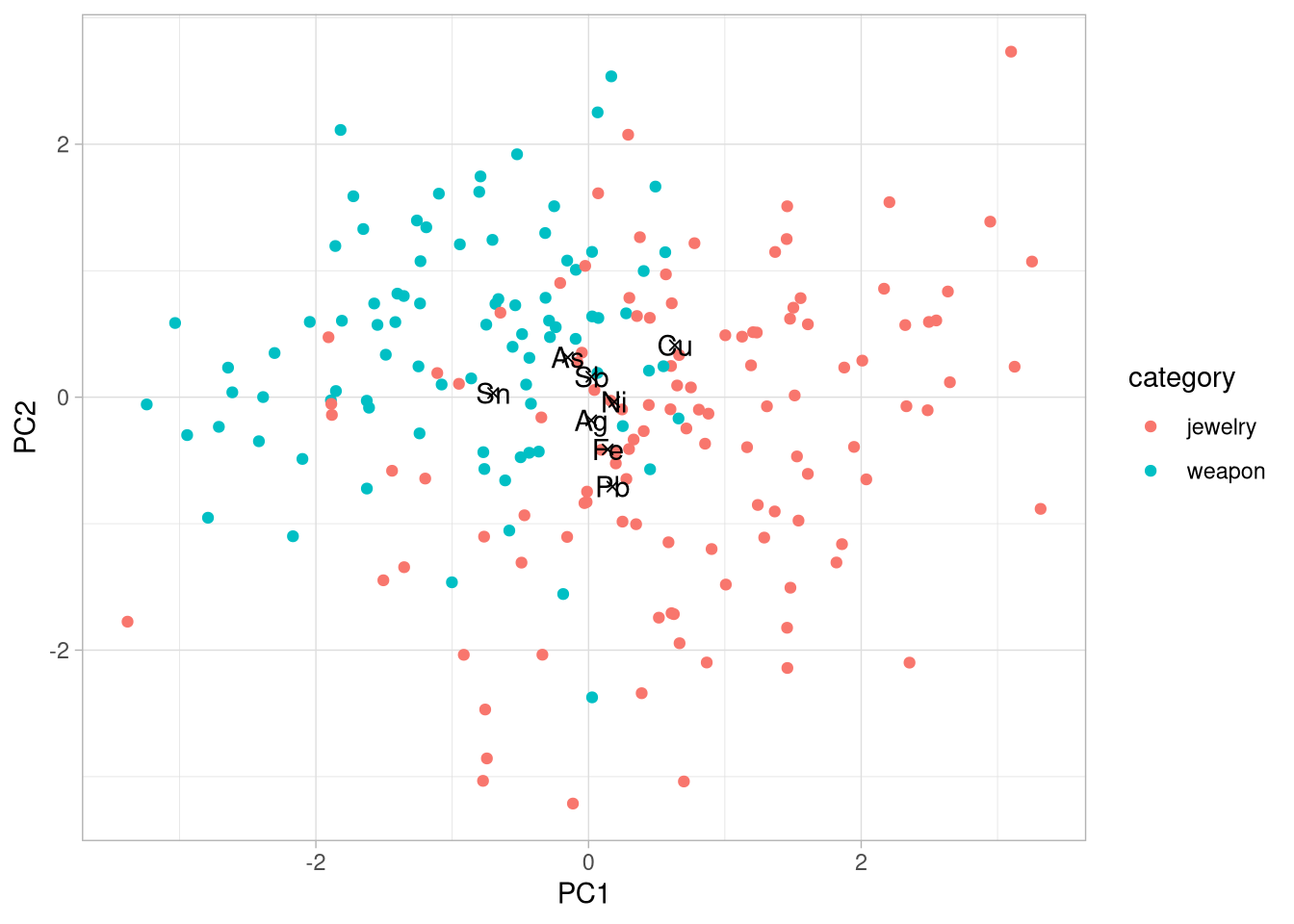

## Quick Solution

ggplot()+
  geom_point(data = table_artefacts, aes(x = PC1, y = PC2, color = category))+
  geom_point(data = table_elements, aes(x = PC1, y = PC2), shape = 4) +
  geom_text(data = table_elements, aes(x = PC1, y = PC2, label = element))+
  labs(
    x = "PC1",
    y = "PC2")+
  theme_light()

Advanced Solution

my_colors <- c(
  "jewelry" = "#e66101",
  "weapon" = "#5e3c99"
)

n_artefacts <- nrow(df_ready)

plot_1 <- ggplot()+
  geom_point(data = table_artefacts,
             aes(x = PC1, y = PC2, color = category),
             shape = 21)+
  geom_point(data = table_elements,
             aes(x = PC1, y = PC2),
             shape = 4) +
  geom_text(data = table_elements,
            aes(x = PC1, y = PC2, label = element),
            vjust = -0.5)+
 scale_color_manual(
   name = "artefact category:",
   values = my_colors,
   labels = c("jewelry", "weapon")
   )+
  labs(
    title = "Principal Component Analysis",
    x = paste0("PC1 (", variability_pc1, " % of variability)"),
    y = paste0("PC2 (", variability_pc2, " % of variability)"),
    caption = paste0("Number of artefacts: ", n_artefacts)
  )+
  theme_light()

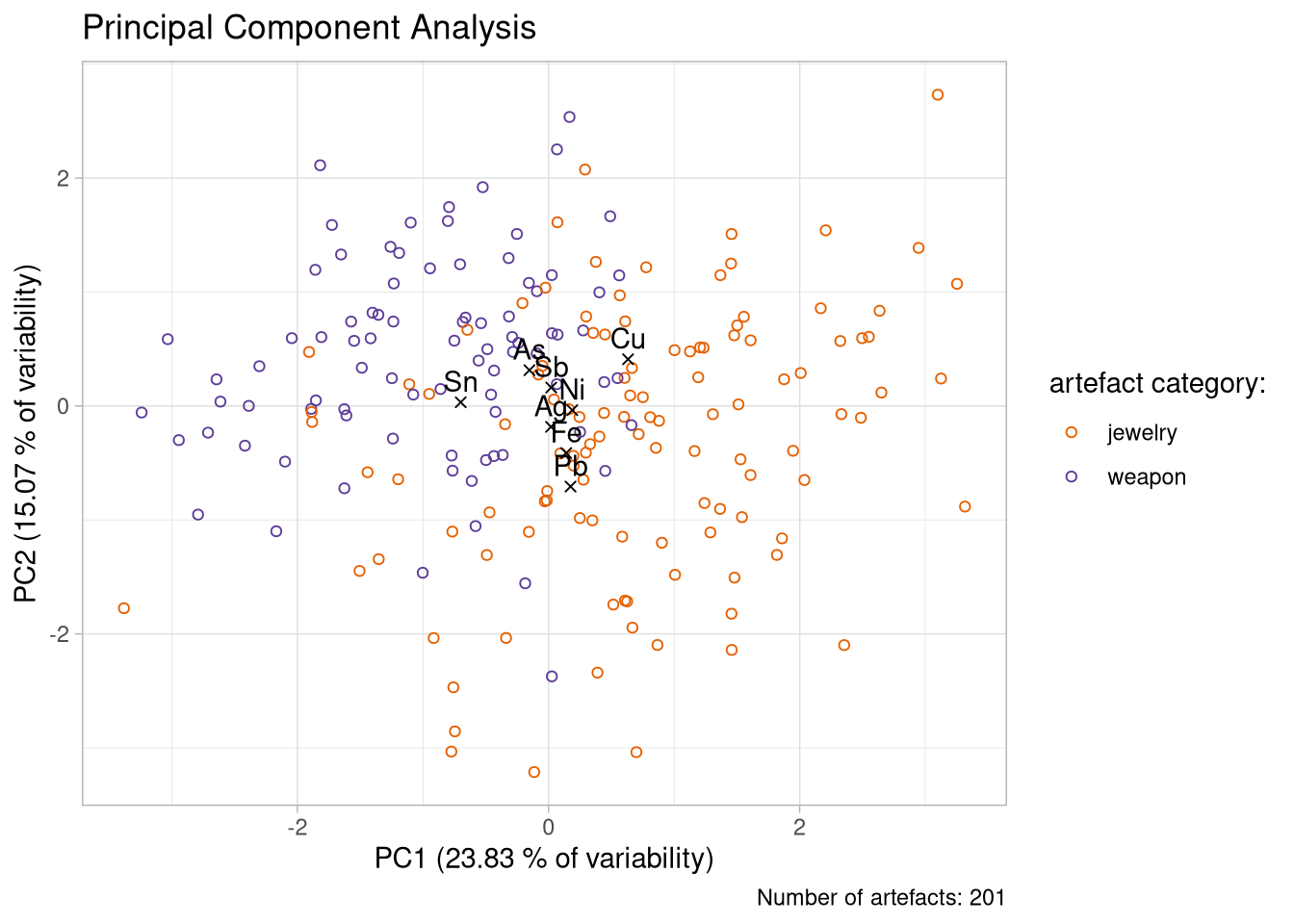

plot_1

Exporting your nice plot:

ggsave(plot =  plot_1,
       filename = here("figs/pca_plot.jpg"),
       units = "cm",
       width = 20,
       height = 15
       )
