SPARQL

Outline

1. Intro to SPARQL
2. SPARQL queries from R

SPARQL query services and endpoints

• Wikidata
• DBpedia
• ARIADNE KB

Introduction to SPARQL

SPARQL Protocol and RDF Query Language

SPARQL

• SPARQL is a query language for RDF data.
• SPARQL is a recursive acronym for SPARQL Protocol and RDF Query Language.
• W3C standard.

Types of queries

• ASK query – returns true/false answer, checks whether there is at least one result.
• SELECT query – returns list (table) of results.
• DESCRIBE query – returns all possible data about an entity.
• CONSTRUCT query – returns new set of triples based on a given template.

SELECT query

PREFIX rdf: <http://www.w3.org/1999/02/22-rdf-syntax-ns#>
PREFIX rdfs: <http://www.w3.org/2000/01/rdf-schema#>

SELECT ?label

FROM <SPARQL endpoint>

WHERE {
  ?subject ?predicate ?object .
  ?object rdfs:label ?label
}

LIMIT 100

Parts of the query

• PREFIX: Namespace definition – prefixes.
• SELECT: Selected variables – will be in the output as column names.
• FROM: Specification of the graph from which we are querying.
• WHERE: Where clause with triple patterns to be matched in the graph.
• LIMIT: Limits the number of returned results (so we do not overload the endpoint).

SPARQL query

• Consists of triple patterns with zero or more variables.
• Variables are prefixed with a question mark (?variableName).
• Triple patterns are matched against the triples in the graph.
• Each matching triple produces one result.

?subject ?predicate ?object .

Common abbreviations

• Subject as ?s
• Predicate/property as ?p
• Object as ?o

Examples

SPARQL queries on DBpedia, Wikidata and ARIADNE KB

Linked Open Data Cloud

https://lod-cloud.net/

LOD knowledge bases:

https://www.wikidata.org/
~12,5 billion triples

http://dbpedia.org/
~9,5 billion triples

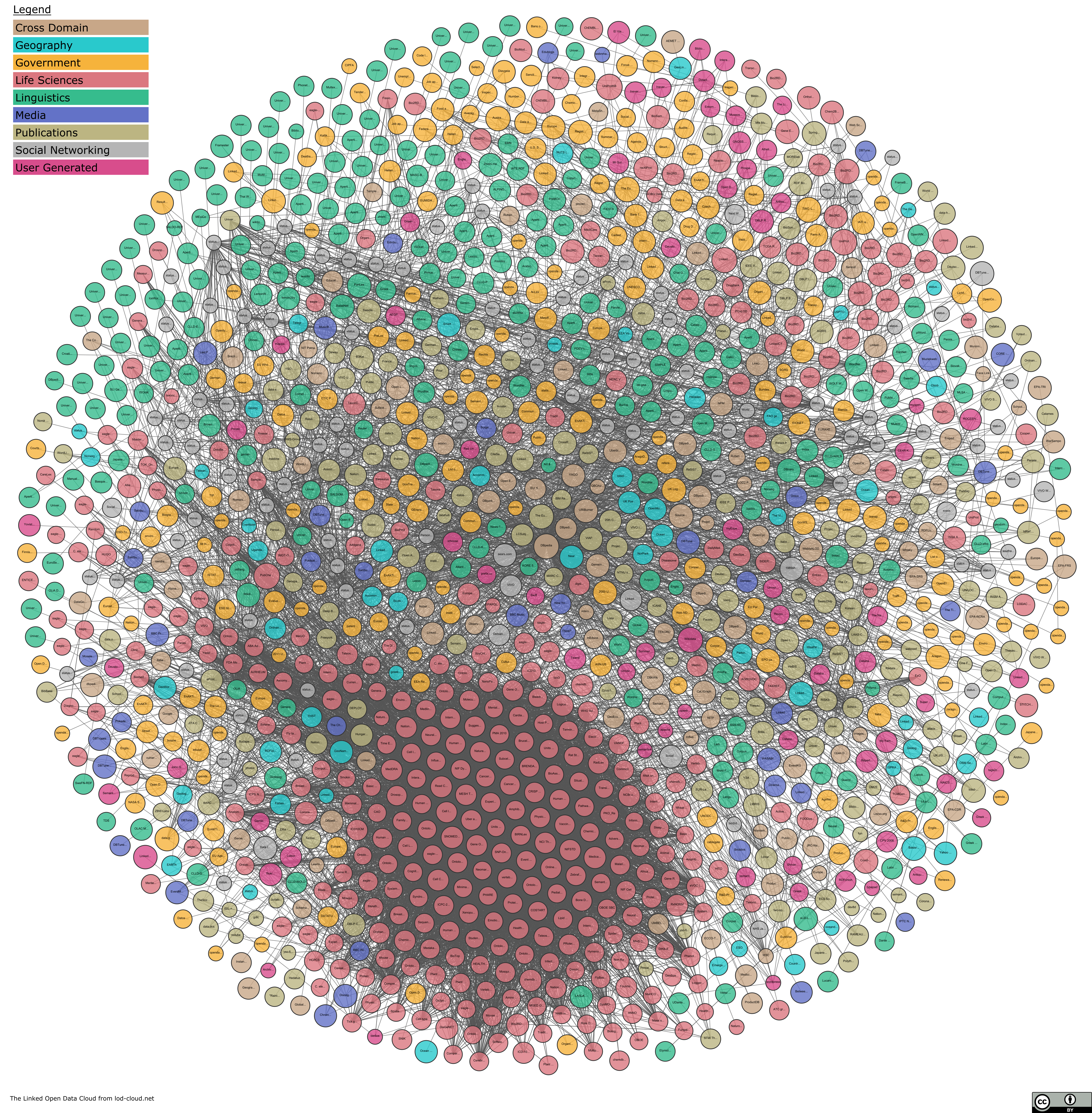

The Linked Open Data Cloud from lod-cloud.net (2024-07-04)

Wikidata - community created structured (!) data, not W3C fully complient, no ontology etc. DBpedia - data extracted from Wikipedia infoboxes, ontology etc.

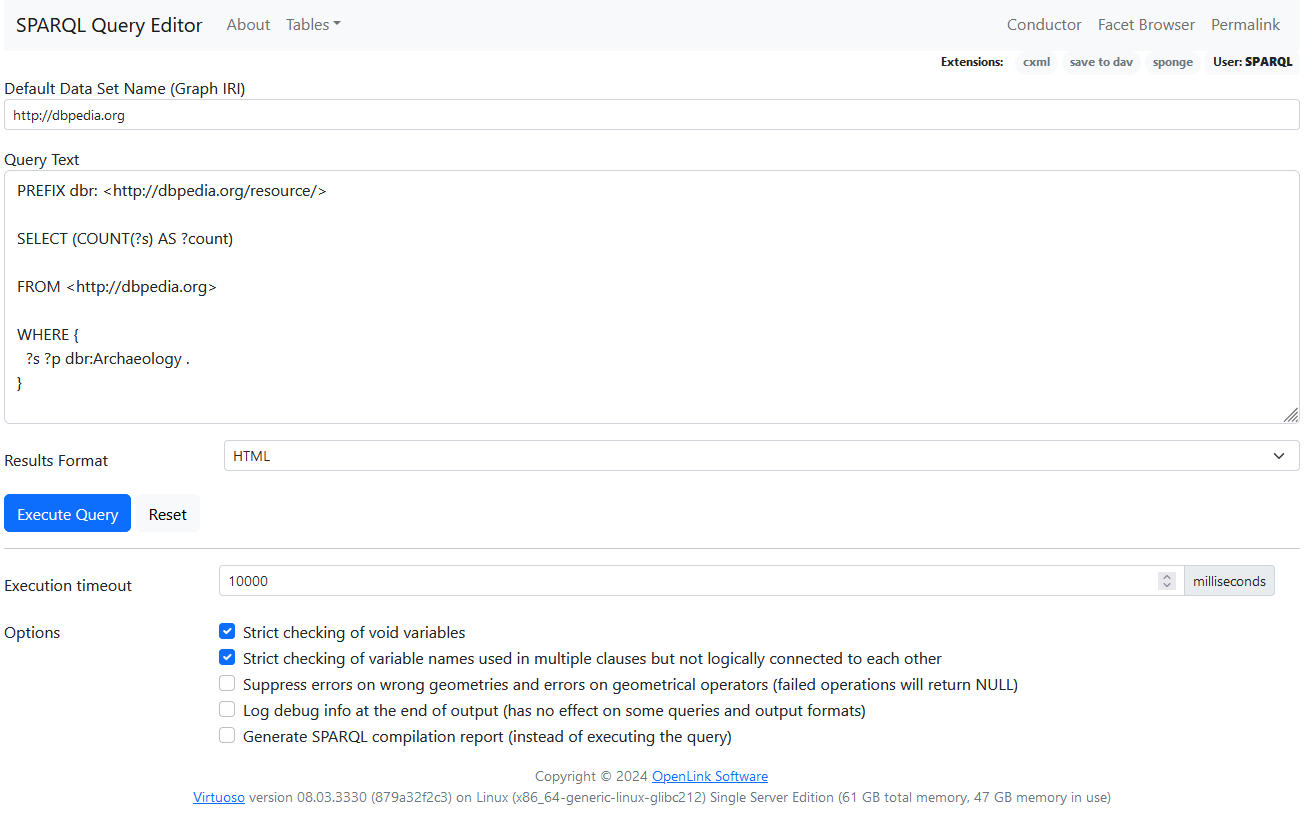

DBpedia Virtuoso query service

https://dbpedia.org/sparql

Example query

DBpedia

• Find all other URIs/IRIs that Ariadne maps to in DBpedia.

PREFIX dbr: <http://dbpedia.org/resource/>
PREFIX owl: <http://www.w3.org/2002/07/owl#>

SELECT ?o

FROM <http://dbpedia.org>

WHERE {
  dbr:Ariadne owl:sameAs ?o .
}

LIMIT 100

Query in DBpedia Virtuoso.

Example query

DBpedia

• Find peole (and the dates they were born and died) who had to do anything with archaeology according to DBpedia.

PREFIX rdf: <http://www.w3.org/1999/02/22-rdf-syntax-ns#>
PREFIX dbr: <http://dbpedia.org/resource/>
PREFIX dbo: <http://dbpedia.org/ontology/>

SELECT ?s ?p ?born ?died

FROM <http://dbpedia.org>

WHERE {
  ?s rdf:type dbo:Person .
  ?s ?p dbr:Archaeology .
  ?s dbo:birthDate ?born .
  ?s dbo:deathDate ?died .
}

ORDER BY ASC (?born)
LIMIT 100

Query in DBpedia Virtuoso.

• ORDER BY ASC orders the results in an ascending order of the given variable.

Example query

DBpedia

• How many pages linking to archaeology are there?

PREFIX dbr: <http://dbpedia.org/resource/>

SELECT (COUNT(?s) AS ?count)

FROM <http://dbpedia.org>

WHERE {
  ?s ?p dbr:Archaeology .
}

Query in DBpedia Virtuoso.

• COUNT(?variable) AS ?result counts the number of returned matches.

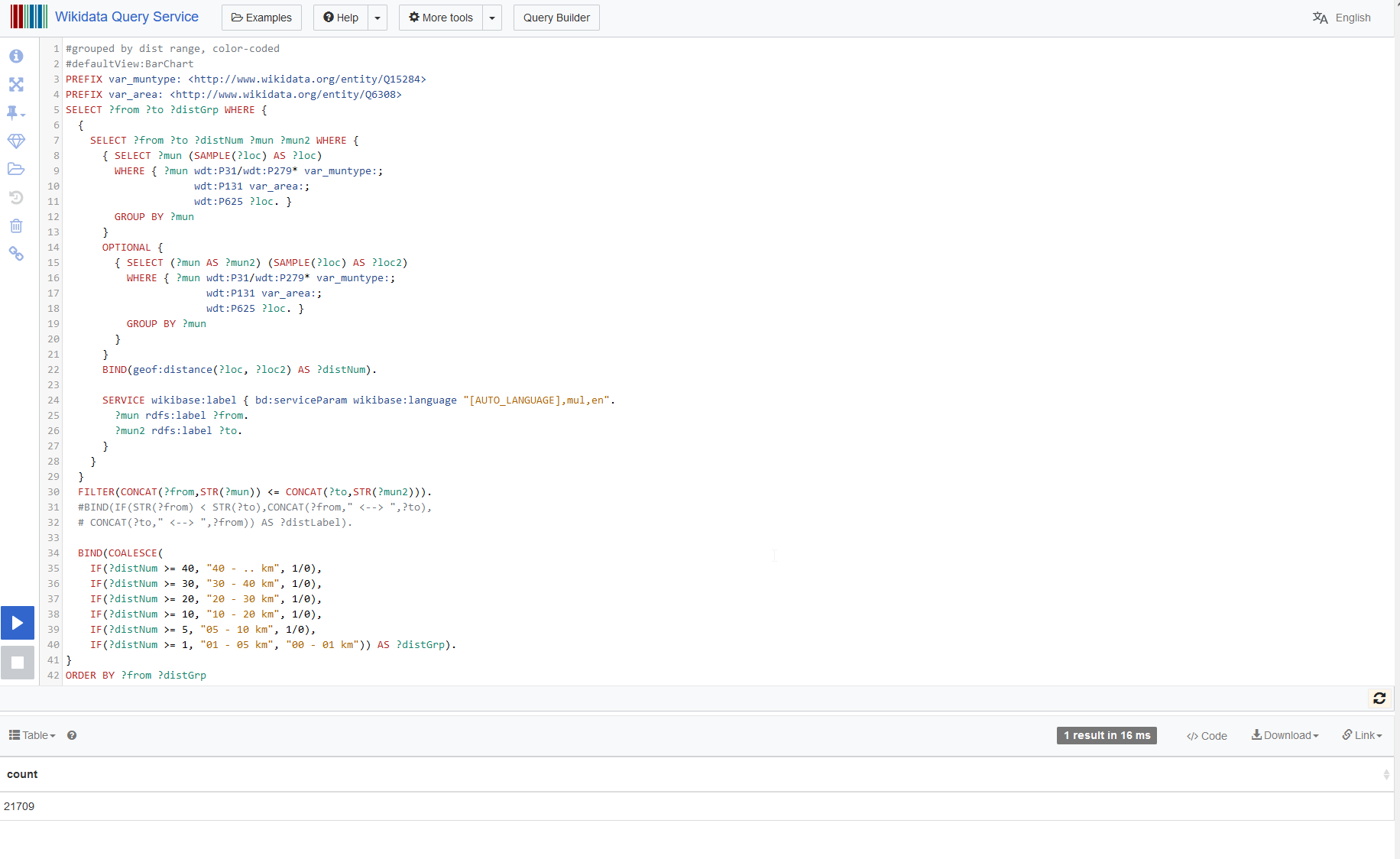

Wikidata Query Service

Query service: https://query.wikidata.org/
SPARQL endpoint: https://query.wikidata.org/sparql

Example query

Wikidata

• How many archaeologists are there in Wikidata?

PREFIX wd: <http://www.wikidata.org/entity/>
PREFIX wdt: <http://www.wikidata.org/prop/direct/>

SELECT (COUNT(?ae) AS ?count)

WHERE {
  ?ae wdt:P31 wd:Q5 .
  ?ae wdt:P106 wd:Q3621491 .
}

Query in Wikidata Query Service.

Example query

Wikidata

• Return a list of archaeologists, their sex/gender, and the dates they were born and died.

PREFIX wd: <http://www.wikidata.org/entity/>
PREFIX wdt: <http://www.wikidata.org/prop/direct/>
PREFIX rdfs: <http://www.w3.org/2000/01/rdf-schema#>

SELECT ?ae ?label ?sex ?born ?died

WHERE {
  ?ae wdt:P31 wd:Q5 ;
    wdt:P106 wd:Q3621491 ;
    rdfs:label ?label ;
    wdt:P21 ?o ;
    wdt:P569 ?born ;
    wdt:P570 ?died ;
  ?o rdfs:label ?sex .

  FILTER (lang(?label) = 'en')
  FILTER (lang(?sex) = 'en')
}

LIMIT 200

Query in Wikidata Query Service.

• FILTER (lang(?label) = 'en') returns only labels in English.

Example query

Wikidata

• Count all archaeological artefacts and archaeological finds in Wikidata.

• Archaeological artefacts (Q220659)

PREFIX wd: <http://www.wikidata.org/entity/>
PREFIX wdt: <http://www.wikidata.org/prop/direct/>

SELECT (COUNT(?a) AS ?count)

WHERE {
  ?a wdt:P31 wd:Q220659 .
}

Wikidata Query Service.

• Archaeological finds (Q10855061)

PREFIX wd: <http://www.wikidata.org/entity/>
PREFIX wdt: <http://www.wikidata.org/prop/direct/>

SELECT (COUNT(?a) AS ?count)

WHERE {
  ?a wdt:P31 wd:Q10855061 .
}

Wikidata Query Service.

• Together in one query using UNION

PREFIX wd: <http://www.wikidata.org/entity/>
PREFIX wdt: <http://www.wikidata.org/prop/direct/>

SELECT (COUNT(?a) AS ?count)

WHERE {
  { ?a wdt:P31 wd:Q220659 } UNION { ?a wdt:P31 wd:Q10855061 }  .
}

Query in Wikidata Query Service.

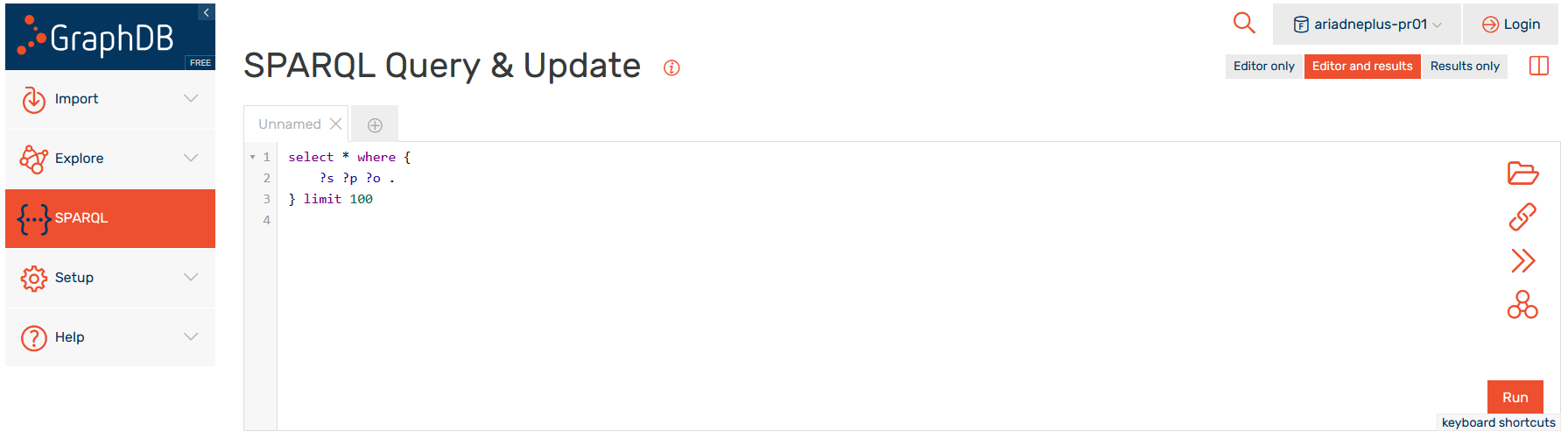

ARIADNE Knowledge Base

GraphDB graph database, accessible through D4Science infrastructure
https://ariadne.d4science.org/

SPARQL endpoint
https://graphdb.ariadne.d4science.org/repositories/ariadneplus-pr01

Example query

ARIADNE KB

• Find a resource with original identifier https://doi.org/10.17026/dans-2b6-gyjh.

PREFIX aocat: <https://www.ariadne-infrastructure.eu/resource/ao/cat/1.1/>
PREFIX rdfs: <http://www.w3.org/2000/01/rdf-schema#>

SELECT *

WHERE {
    ?record aocat:has_original_id "https://doi.org/10.17026/dans-2b6-gyjh" .
    ?record rdfs:label ?lab .
}

Query in ARIADNE GraphDB.

• What is it?

PREFIX aocat: <https://www.ariadne-infrastructure.eu/resource/ao/cat/1.1/>
PREFIX rdfs: <http://www.w3.org/2000/01/rdf-schema#>

SELECT *

WHERE {
    ?record aocat:has_original_id "https://doi.org/10.17026/dans-2b6-gyjh" ;
      rdfs:label ?lab ;
      aocat:has_ARIADNE_subject ?as .
    ?as rdfs:label ?aslab .
}

Query in ARIADNE GraphDB.

Example query

ARIADNE KB

• What are the native subjects of resource (artefact) 10.17026/dans-2b6-gyjh?

PREFIX aocat: <https://www.ariadne-infrastructure.eu/resource/ao/cat/1.1/>
PREFIX rdfs: <http://www.w3.org/2000/01/rdf-schema#>

SELECT *

WHERE {
    ?record aocat:has_original_id "https://doi.org/10.17026/dans-2b6-gyjh" ;
      rdfs:label ?lab ;
      aocat:has_native_subject ?ns .
}

Query in ARIADNE GraphDB.

• Let GraphDB DESCRIBE the resource for us.

DESCRIBE <https://ariadne-infrastructure.eu/aocat/Resource/09C1C711-5775-3FFB-AD82-F3C9A5532D26>

Query in ARIADNE GraphDB.

Example query

ARIADNE KB

• Return all ARIADNE subjects.

PREFIX aocat: <https://www.ariadne-infrastructure.eu/resource/ao/cat/1.1/>
PREFIX rdfs: <http://www.w3.org/2000/01/rdf-schema#>

SELECT DISTINCT ?as ?label

WHERE {
    ?s aocat:has_ARIADNE_subject ?as .
    ?as rdfs:label ?label .
}

Query in ARIADNE GraphDB.

Wrap up

• SPARQL is a very complex and versatile query language for queries (not only) on graph data.
• Most common queries are using SELECT verb.
• Triples in the SELECT query are matched against the triples in the graph. One matching triple in the graph returns one row in the results.
• Variable names are prefixed with a question mark (?).

Common variable names

• ?s for subject.
• ?p for predicate.
• ?o for object.

Learning SPARQL book by Bob DuCharme
https://www.learningsparql.com/

SPARQL queries in R

How to query SPARQL endpoints from R

LOD packages in R

glitter

Allows writing and performing SPARQL queries without advanced knowledge of SPARQL.

https://lvaudor.github.io/glitter/index.html

remotes::install_github("lvaudor/glitter")

rdflib

Allows to perform common tasks on local RDF data, including converting between serializations and performing SPARQL queries.

https://docs.ropensci.org/rdflib/

remotes::install_github("ropensci/rdflib")

jsonld

Various functions for formatting of JSON-LD data and transformation to RDF (N-Quads).

https://docs.ropensci.org/jsonld/index.html

install.packages("jsonld")

glitter

• Functions are prefixed with spq_.

Main functions

• spq_init(endpoint = "wikidata") initiates a SPARQL query.
• spq_add("?s ?p ?o") adds a triple pattern to match.
• spq_perform(<query>) performs the query.

Additional functions

• spq_prefix() add prefix to the query.
• spq_label(<var>) adds labels to given variables with rdfs:label.
• spq_head(n) limits number of returned results using LIMIT n.
• spq_arrange(desc(<var>)) arranges results in descending order of the variable.
• spq_filter(<var>) filter results.
• spq_group_by(<var>) group results by one or more variables.
• spq_count() and spq_summarise(<var>) count results or summarise chosen variables.
• spq_select(<var>) select variables.

Queries with glitter

Wikidata

• Explore and continue work in the R script with comments here.
  https://petrpajdla.github.io/atRium/sparql/wikidata.r
• Check out article by Sophie C. Schmid et al. 2022 Practices of Linked Open Data in Archaeology and Their Realisation in Wikidata https://doi.org/10.3390/digital2030019
  • Try to reproduce the Ogham stones distribution map.
  • Try to reproduce the Samian Ware distribution map.

ARIADNE KB

ARIADNE SPARQL endpoint is here:

https://graphdb.ariadne.d4science.org/repositories/ariadneplus-pr01

• Explore and continue work in the R script here.
  https://petrpajdla.github.io/atRium/sparql/ariadne.r
  • Check AO-Cat Ontology if needed.
